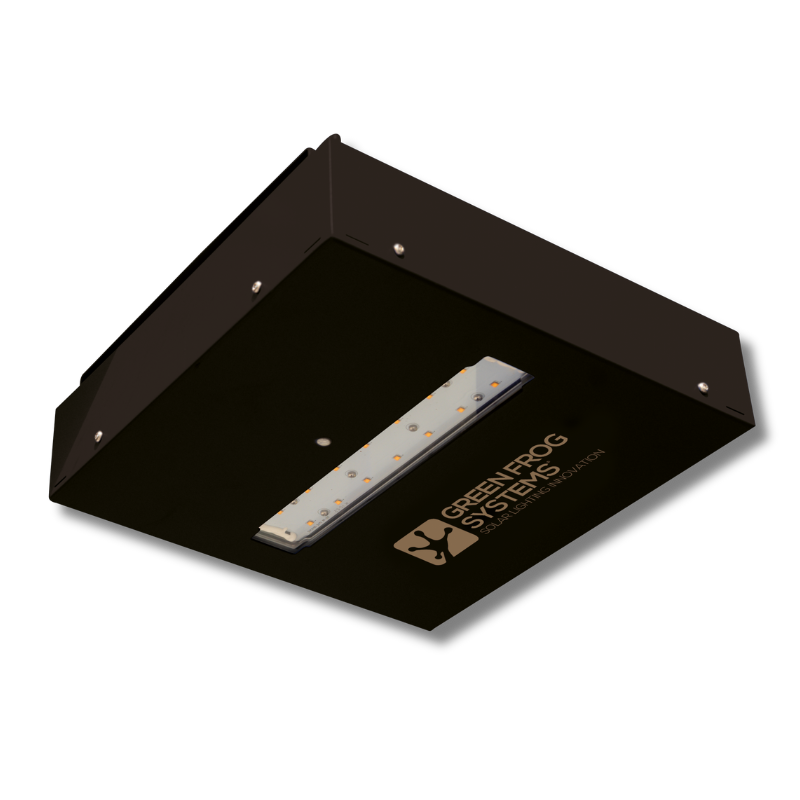

MSL-50

vandal-resistant, modular solar lighting system with exceptional autonomy

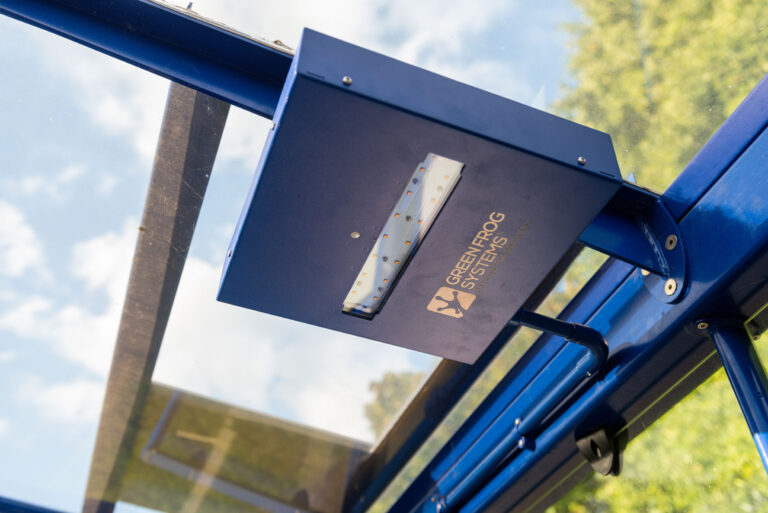

Designed to make public spaces safer and more accessible, the MSL-50 is a modular, solar-powered LED lighting system offering maintenance-free, vandal-resistant, and energy-efficient lighting for shelters and canopies. Its separate panel design allows light to be strategically placed in sheltered and covered areas where it’s needed most – all without mains power. With a compact design that enables easy installation, the MSL-50 provides a cost-effective solution for various applications, including public realm, education and rail.

Product specifications

  1. Warranty
    5 years

  2. Certification
    UKCA
    CE

  3. Electrical Class
    Class 1

  4. IP Rating
    IP65

  5. IK Rating
    IK10

  6. Applications
    Bus shelters
    Canopies
    Public Realm
    Education
    Rail

Lighting

  1. Lumen Range (Lumens)
    975-2,805lm

  2. Output Power (Watts)
    1-15W, default setting 1-7.5W + 7.5W (boost mode)

  3. Colour Temperature (Kelvin)
    3000K or 4000K

  4. L90 Lifetime Estimate (Hours)
    <100,000

Power and Controls

  1. Controls
    PIR (standard):
    All night mode: Operates at a constant all-night level of illumination until dawn
    Sensor mode: Detects movement and increases illumination up to 100% until no motion is detected
    for 30 seconds
    Surprise mode: No light until motion is detected then turns on until no motion is detected for
    30 seconds

    Options:
    ON/OFF: Through solar panel switching 1-14 hours PIR: 360º 6m detection zone. Activates for 30 seconds
    DIM: Adjustable dimming modes with programmable ON / OFF settings (1-14 hours) light dimming settings from 5%-100% with additional programme to schedule ON time before dawn (1-4 hours)
    PIR/DIM: PIR and dimming (1-7.5W + 7.5W)

Mechanical and Installation

  1. Materials
    LED fixture:
    Body: 316 stainless steel, with tamper-proof stainless steel fixings
    Lens: Double-laminated safety glass (linear or round options available)
    Solar panel:
    50W Monocrystalline military-grade edgeless toughened glass panel, on a 316 stainless steel backing plate

  2. Finish
    Stainless steel or polyester powder coat

  3. Colour
    Any RAL

  4. Mounting
    Universal mounting brackets and 3-metres of cable included
    For special projects, we can design custom mounting brackets to suit your canopy or shelter
    Modular panel solution

Solar Panel

  1. Panel size
    530mm x W: 530mm x H: 29mm

  2. Panel type
    Monocrystalline

  3. Panel efficiency
    24%

Battery

  1. Battery technology
    LiFePO4 with Advanced Cell Technology
    Charging system measures temperature and optimises charge to increases battery life
    10 year battery warranty

  2. Battery Autonomy
    Example winter autonomy: 9 days at 3W
    Contact us for a calculation on your scheme
