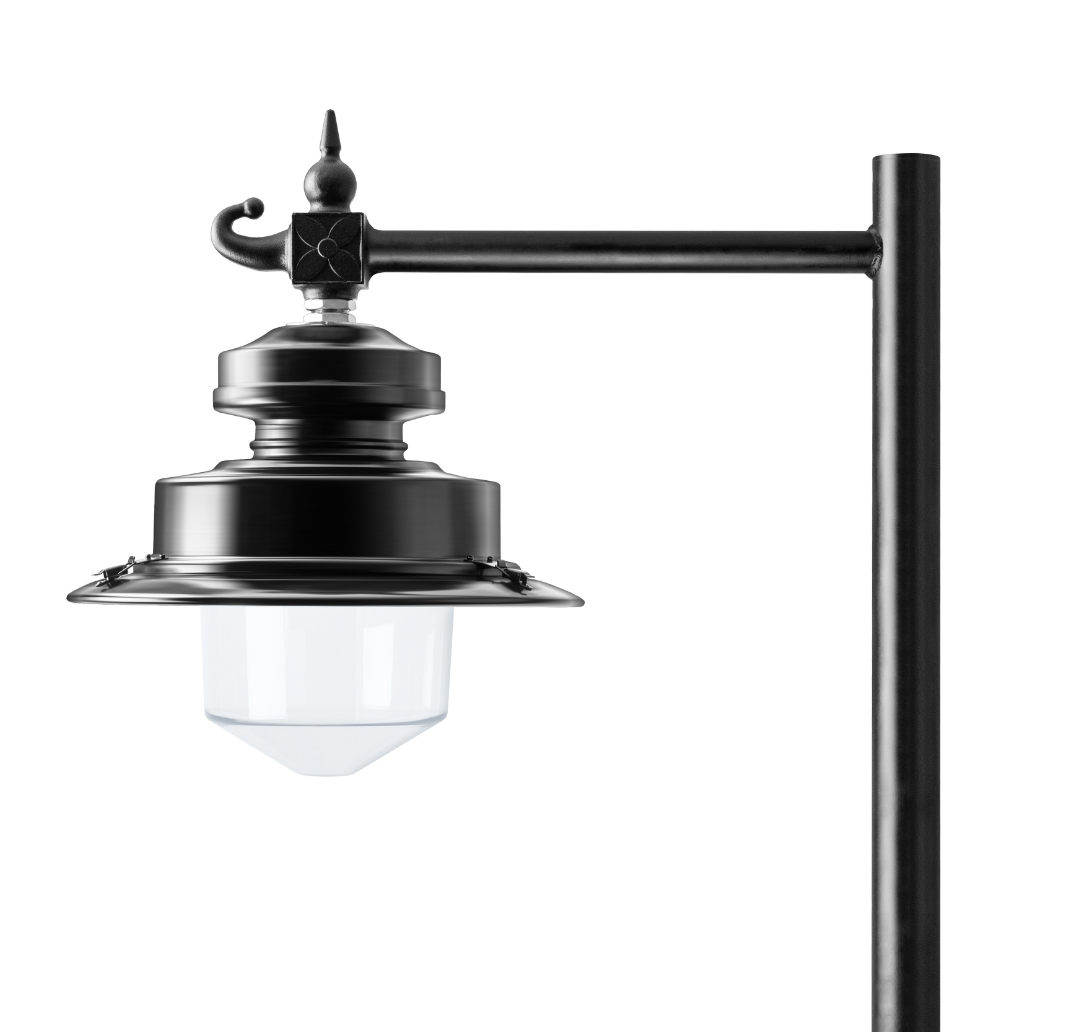

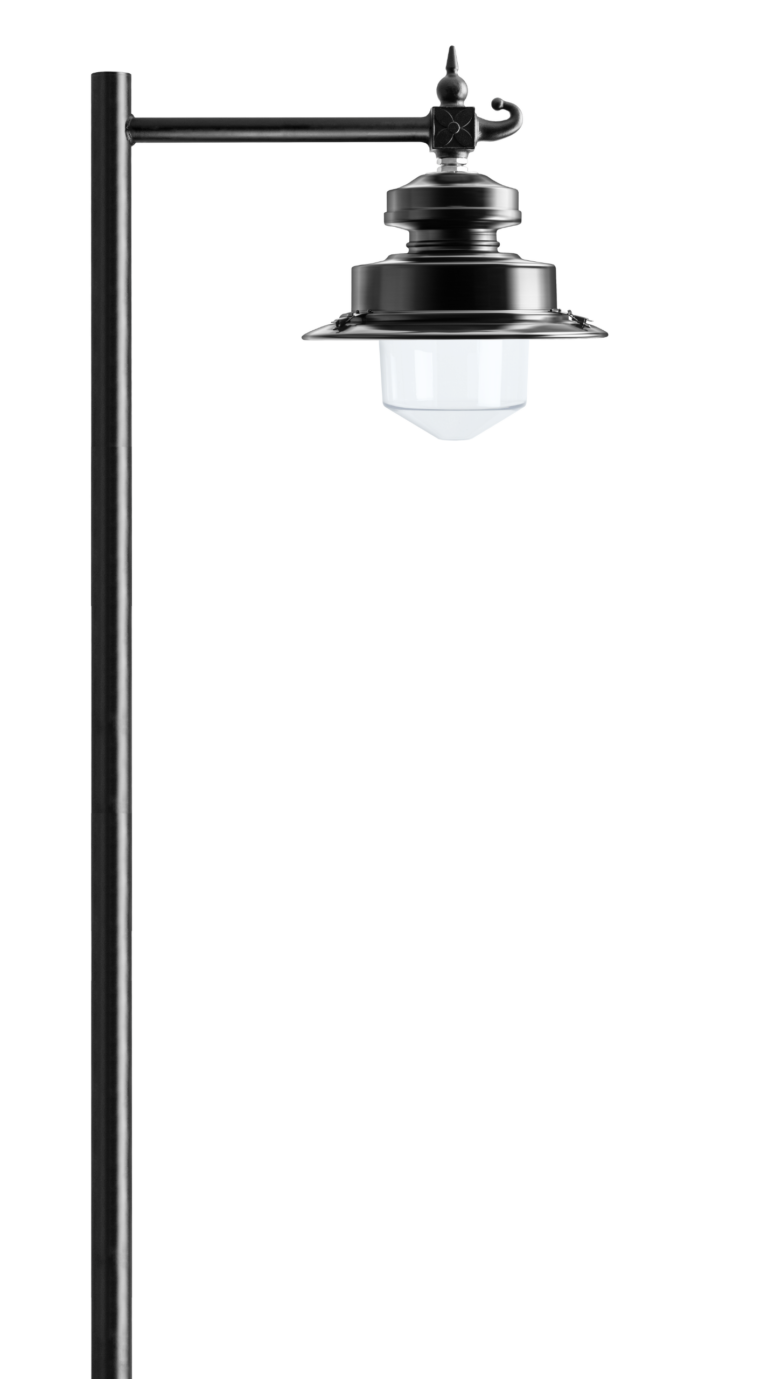

Small Bury
classic design, modern technology
Small Bury is the smallest of two equally proportioned sizes (Small, and Large) used on a wide range of applications from residential lighting to town centres.
Crafted using the finest locally sourced materials in the UK, which ensures not only exceptional quality, durability, and performance but also a reduced carbon footprint.
Product specifications
-
Warranty
12 years -
Certification
CE, UKCA, Triple E -
Electrical Class
Class 1 -
IP Rating
Up to IP66 -
IK Rating
IK10++ -
Mounting Height
4 - 8m -
Mounting
1.25” BSP SS suspended. Quick release option available. -
Applications
Residential roads
Town centres
Campuses
Parks
Footpaths
Areas of historic interest
Lighting
-
Lumen Range (Lumens)
1,000-10,000 -
Output Power (Watts)
8-80 -
LED Quantity
Performance LED (12/24)
Performance COB (1)
Comfort COB (1)
Braun Gas Effect (6) -
Colour Temperature (Kelvin)
2700K, 3000K, or 4000K -
L90 Lifetime Estimate (Hours)
100,000
Power and Controls
-
Drive Current Range
<950mA -
Surge Protection
10kV (Standard) -
Controls
Compatible with all leading CMS
Miniature photocell
Part-night switching
Pre-programmed dimming
Mechanical and Installation
-
Materials
Body: Aluminium
Optic bowl: Frosted or clear UV stabilised polycarbonate
Spigot: Stainless Steel -
Finish
Polyester powder coat -
Colour
RAL 9005 Black
Other RAL colours available on request -
Operating Temperature
-20°C to +50°C
light engines
-
Braun gas effect
For an authentic gas mantle aesthetic, and comfortable pedestrian-friendly lighting
-
Comfort COB
Low-glare, non-intrusive, pedestrian-friendly lighting that is soft, comfortable, and energy-efficient
-
Performance COB
Performance lighting with a softer aesthetic and more traditional lamp appearance
-
Performance LED
Choose for industry-leading optical performance and optimal energy savings
