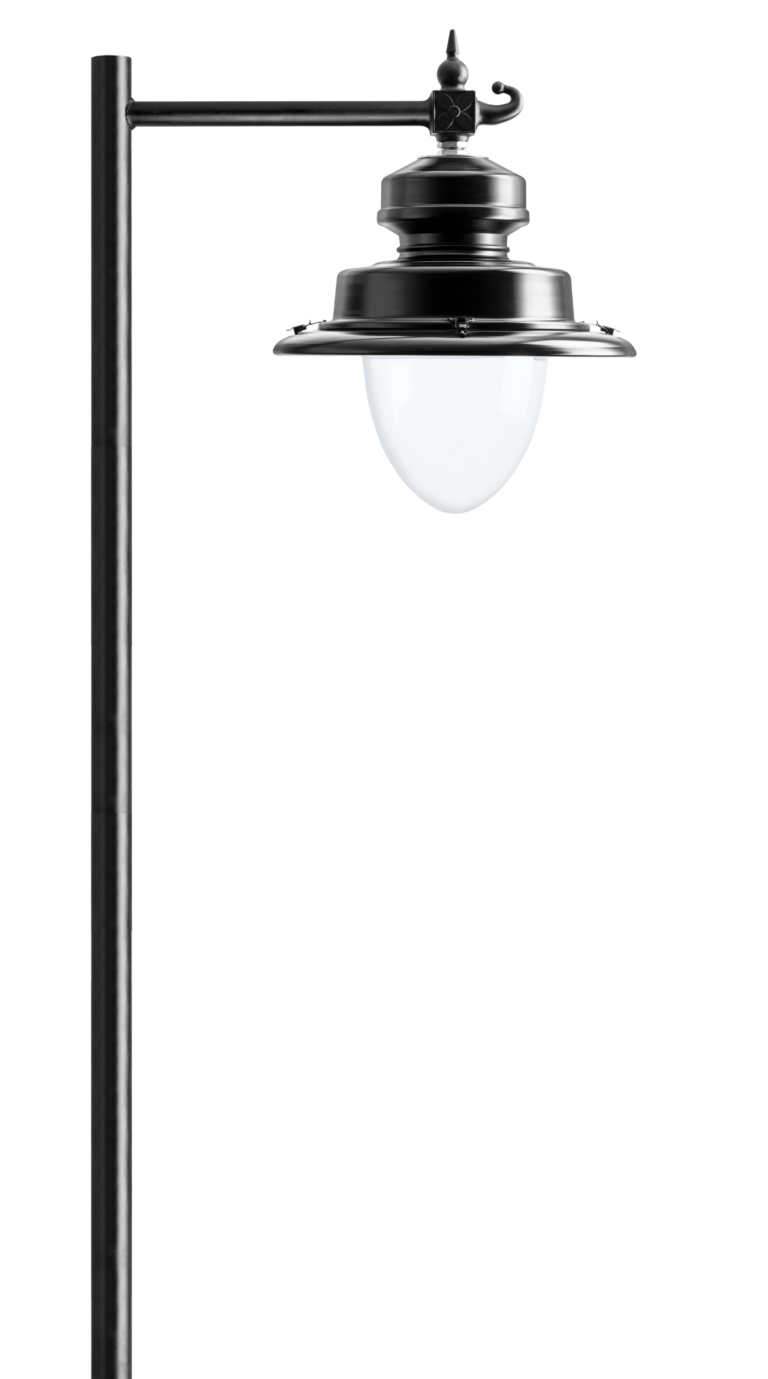

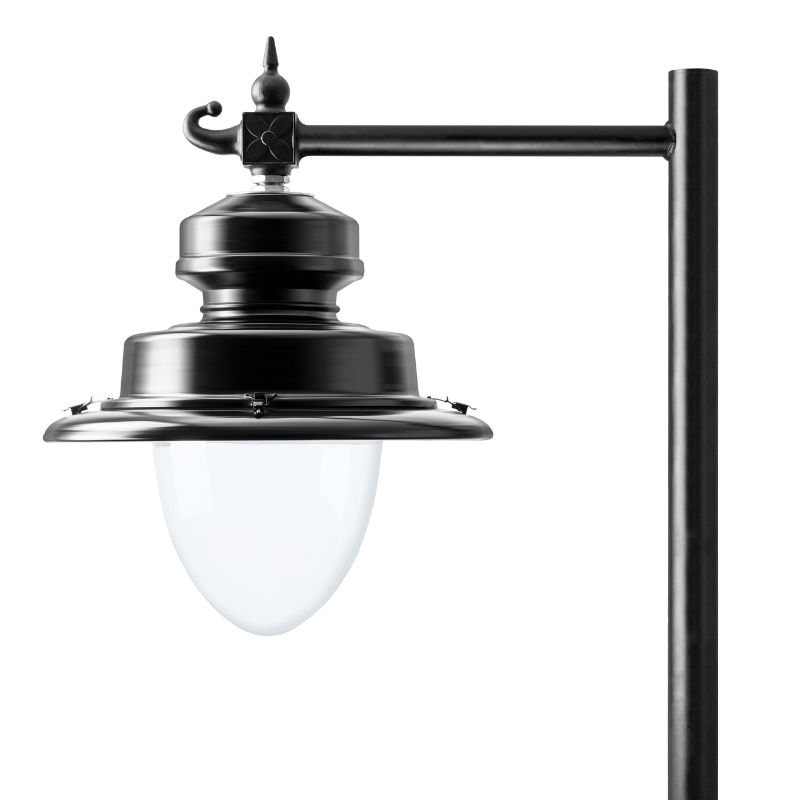

Large Birkdale
one of our most popular traditional luminaires
Large Birkdale is the largest of three sizes popular on a wide range of applications from residential lighting to main road lighting.
Crafted using the finest locally sourced materials in the UK, which ensures not only exceptional quality, durability, and performance but also a reduced carbon footprint.
Product specifications
-
Warranty
12 years -
Certification
CE, UKCA, ENEC, Triple E -
Electrical Class
Class 1 -
IP Rating
Optic bowl: IP66
Gear compartment: Up to IP65 -
IK Rating
IK10++ -
Mounting Height
8 - 12m -
Mounting
Suspended vertically from 1.25” stainless steel (Grade 316) spigot
Quick release option available -
Applications
Residential roads
Town centres
Campuses
Parks
Footpaths
Areas of historic interest
Lighting
-
Lumen Range (Lumens)
1,000-14,000 -
Output Power (Watts)
8-105 -
LED Quantity
Performance LED (12/24/36)
Performance COB (1)
Comfort COB (1)
Braun Gas Effect (6) -
Colour Temperature (Kelvin)
2700K, 3000K, or 4000K -
L90 Lifetime Estimate (Hours)
100,000
Power and Controls
-
Drive Current Range
<950mA -
Surge Protection
10kV (Standard) -
Controls
Compatible with all leading CMS
Miniature photocell
Part-night switching
Pre-programmed dimming
Mechanical and Installation
-
Materials
Body: Aluminium
Optic bowl: Frosted or clear UV stabilised polycarbonate
Spigot: Stainless Steel -
Finish
Polyester powder coat -
Colour
RAL 9005 Black
Other RAL colours available on request -
Operating Temperature
-20°C to +50°C
light engines
-
Braun gas effect
For an authentic gas mantle aesthetic, and comfortable pedestrian-friendly lighting
-
Comfort COB
Low-glare, non-intrusive, pedestrian-friendly lighting that is soft, comfortable, and energy-efficient
-
Performance COB
Performance lighting with a softer aesthetic and more traditional lamp appearance
-
Performance LED
Choose for industry-leading optical performance and optimal energy savings
