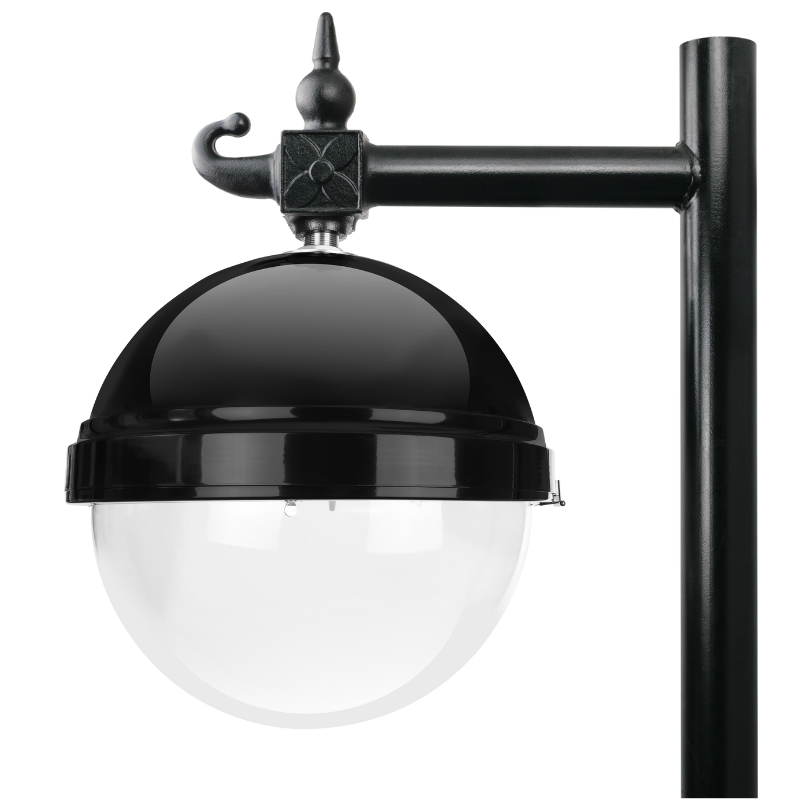

Ealing
a spherical contemporary profile popular with car park applications
Ealing can be supplied as a pendant, for suspension from pendant brackets, and canopies, or as a side entry solution.
Crafted using the finest locally sourced materials in the UK, which ensures not only exceptional quality, durability, and performance but also a reduced carbon footprint.
Product specifications
-
Warranty
12 years -
Certification
CE, UKCA, Triple E -
Electrical Class
Class 1 -
IP Rating
Optic bowl: IP66
Gear compartment: Up to IP65 -
IK Rating
IK10++ -
Mounting Height
8 - 12m -
Mounting
Side entry or suspended, 60mm standard. -
Applications
Residential roads
Town centres
Campuses
Parks
Footpaths
Lighting
-
Lumen Range (Lumens)
1,000-14,001 -
Output Power (Watts)
8-105 -
LED Quantity
Performance LED (12/24/36), Performance COB (1), Comfort COB (1), Braun Gas Effect (6) -
Colour Temperature (Kelvin)
2700K, 3000K, or 4000K -
L90 Lifetime Estimate (Hours)
>100,000
Power and Controls
-
Drive Current Range
<950mA -
Surge Protection
10kV (Standard) -
Controls
Compatible with all leading CMS
Miniature photocell
Part-night switching
Pre-programmed dimming
Mechanical and Installation
-
Materials
Body: Aluminium
Optic bowl: Frosted or clear UV stabilised polycarbonate -
Finish
Polyester powder coat -
Colour
RAL 9005 Black, RAL 1013 Cream, Other RAL colours available on request -
Operating Temperature
-20°C to '+50°C
light engines
-
Braun gas effect
For an authentic gas mantle aesthetic, and comfortable pedestrian-friendly lighting
-
Comfort COB
Low-glare, non-intrusive, pedestrian-friendly lighting that is soft, comfortable, and energy-efficient
-
Performance COB
Performance lighting with a softer aesthetic and more traditional lamp appearance
-
Performance LED
Choose for industry-leading optical performance and optimal energy savings
