Quda EV

7kW illuminated bollard charger

Download data sheet

Colour temp 2200K, 2500K, 2700K, or 4000K
Mounting height 1000 mm
Certification BS7671:2018
UKCA
OCPP 1.6
OLEV EVHS & WCS Approval
EMCD 2014/30/EU: EMC Directive

on-street ev charging bollard

Colour temp 2200K, 2500K, 2700K, or 4000K
Mounting height 1000 mm
Certification BS7671:2018
UKCA
OCPP 1.6
OLEV EVHS & WCS Approval
EMCD 2014/30/EU: EMC Directive

Can we help? Get in touch and we’ll respond as soon as we can.

Need help choosing?

Speak to our specialist

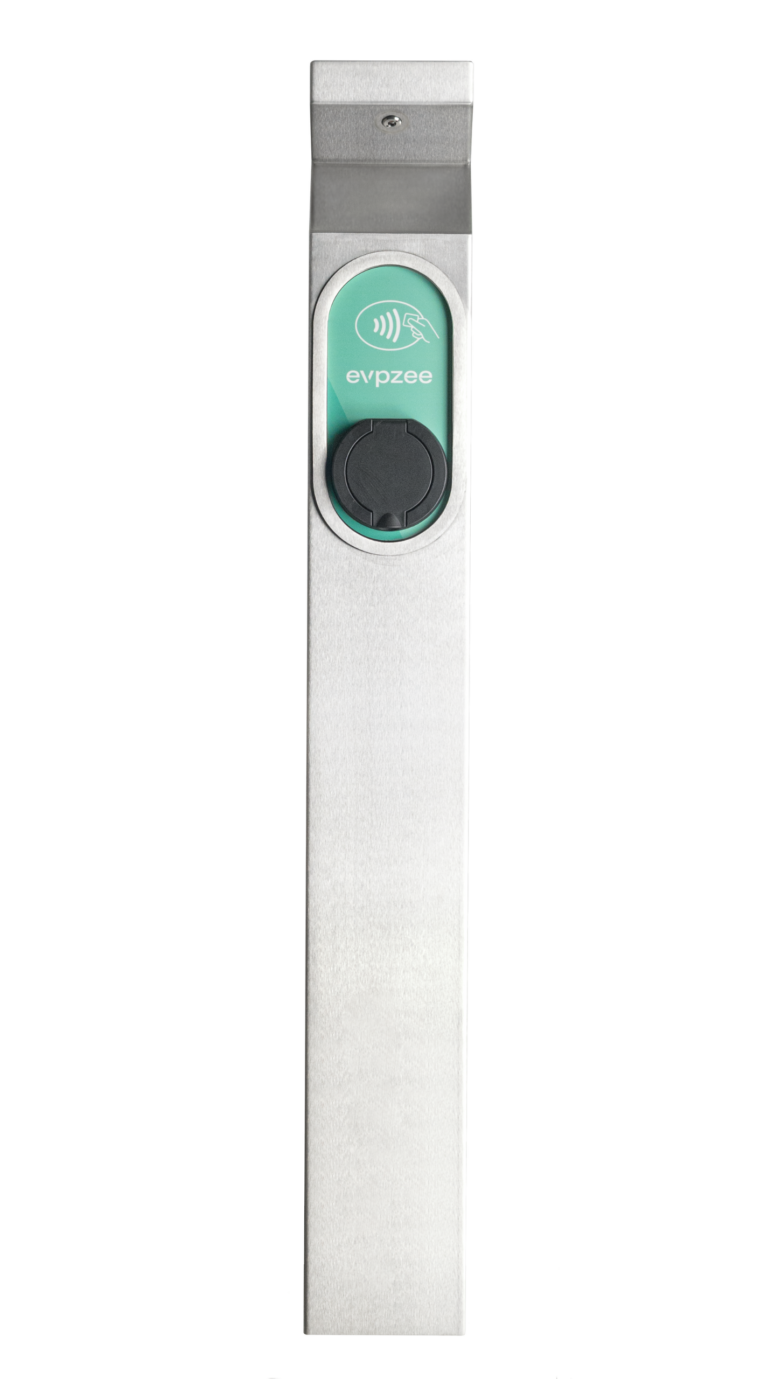

Quda EV 7kW illuminated bollard charger

Quda EV
Download PDF
Need help choosing?
Speak to our specialist

easy peasy on-street charging

on-street ev charging bollard

Quda EV

evpzee pathway illumination and ev charging

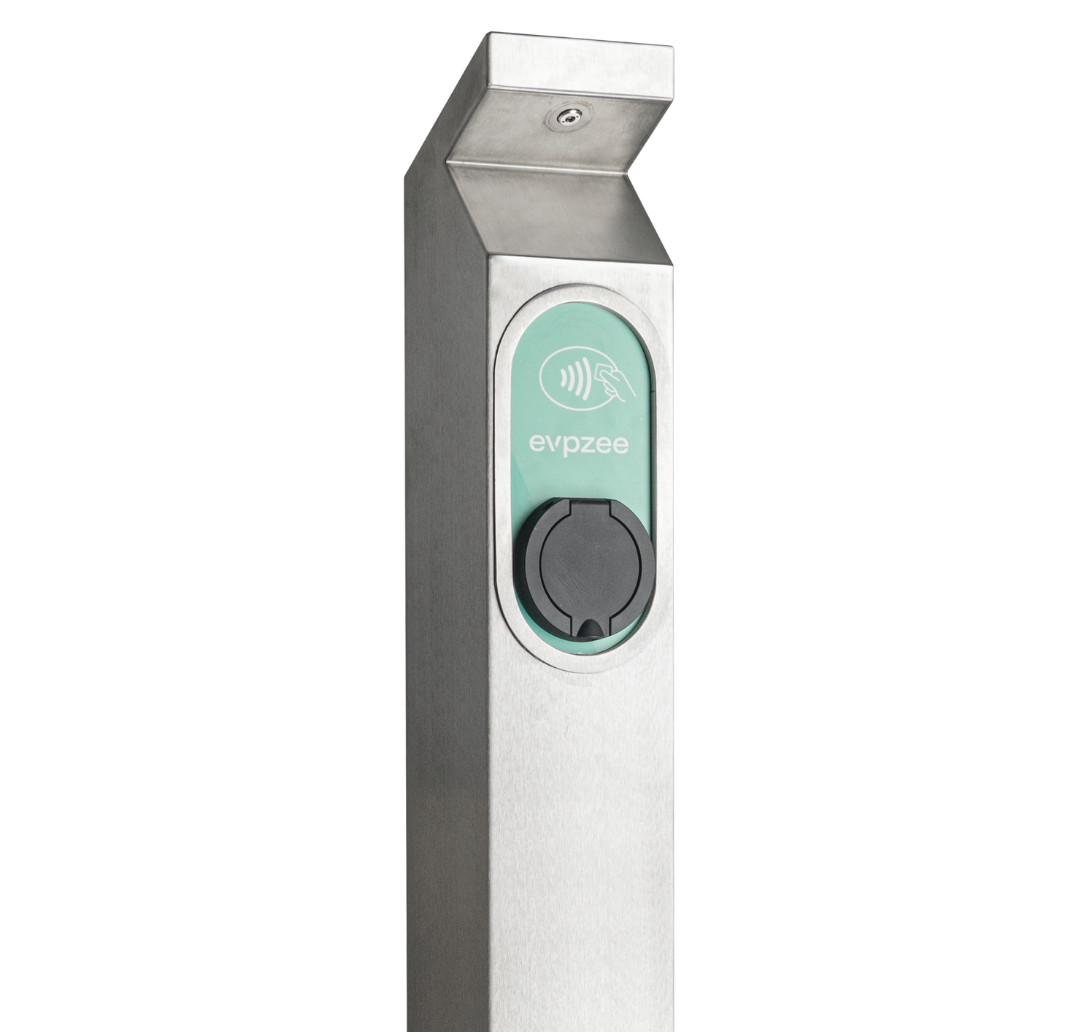

Quda EV Bollard can be specified with or without pathway illumination, for easy-peasy ev charging within car parks, and on footpaths. An ideal on-street charging alternative to lamp post charging.

Product specifications

Warranty
3 years
Option of extended warranty
Certification
BS7671:2018
UKCA
OCPP 1.6
OLEV EVHS & WCS Approval
EMCD 2014/30/EU: EMC Directive
Electrical Class
Class 1
IP Rating
IP66
IK Rating
IK10
Mounting Height
1000 mm
Mounting
Root mounted
Flange
Applications
On-street
Residential roads
Town centres
Campuses
Industrial parks

Lighting

Lumen Range (Lumens)
500-2000
Colour Temperature (Kelvin)
2200K, 2500K, 2700K, or 4000K

Power and Controls

Controls
Fully programmable driver option

Mechanical and Installation

Materials
Stainless steel body: Grade 304 or 316L
Finish
Satin brushed stainless steel
Polyester powder coat
Colour
Any standard RAL
Operating Temperature
From -20℃ to 50℃
Diameter
140 mm
190 mm
